G2198AKW1U
PMIC for Color Electronic Paper Display
The G2198A is a single-chip power management IC (PMIC) for color electronic paper displays EPD that provides source- and gate-driver power supplies, a VCOM amplifier, and a temperature sensor. All rails are adjustable through the I2C interface to accommodate specific panel requirements.
Downloads
Specifications
|
Vin (V)
|
min.
|
3 |
|---|---|---|
|
max.
|
5.5 | |
|
DCDC
|
CH
|
6 |
|
LDO
|
CH
|
6 |
|
SW
|
CH
|
-- |
|
CHG
|
(A)
|
-- |
|
Control
|
Interface
|
I2,EN |
|
Note
|
VPOS1/VNEG1=200mAVPOS2/CNEG2=300mAVPOS3/VNEG3=500mATracking VPOS1/2/3+VNEG1/2/3= ±50mV2*CP for VGH=60mA, VGL=60mA1*OPA, DC_VCOM ,Built-in XONNTC Monitoring, UVP/SCP/OCP/OTP/UVLO | |
|
Package
|

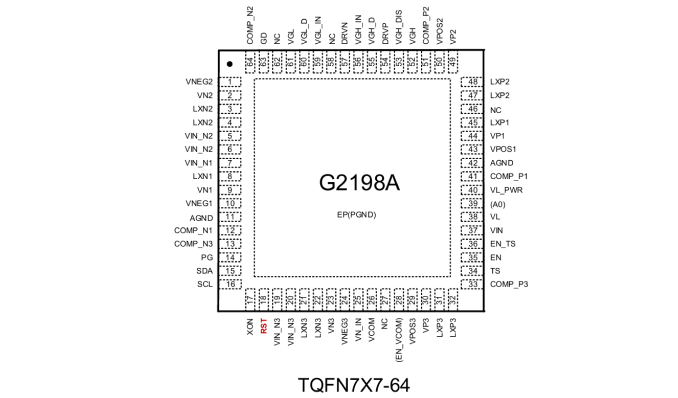

TQFN7X7-64 | |
|
Datasheet
|
EDS-2198A-1879-250702-0.4.pdf | |
