G2257Q51U

4+1 channels PMIC
The G2257 provide a complete power supply solution for handsets or data card. It contains four dc/dc converters, and one LDO to power each critical blocks of the system, and is optimized for maximum battery life, featuring a low ground current when in standby mode operation. All channels DC/DC converters operate at 1.5MHz to optimize size, cost, and efficiency. All Synchronous converters are enabled by individual EN pin control and operate at pulse skipping mode at light load.

Downloads

EDS-2257-1496-250226-0.4
Add to compare Add to inquiry
Specifications
Vin (V)
min.
2.7
max.
5.5
DCDC
CH
4
LDO
CH
1
SW
CH
--
CHG
(A)
--
Control
Interface
ENx
VFBx
Note
DCDC1/2=3A, DCDC3/4=2A,LDO1=600mA

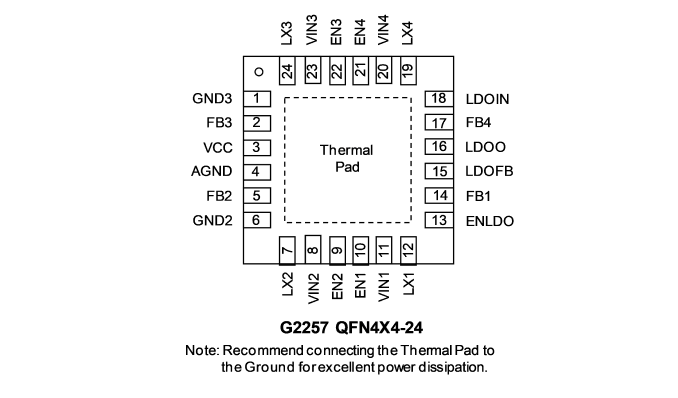

Package
QFN4X4-24
Datasheet
EDS-2257-1496-250226-0.4.pdf
Application Fields
Handheld Device

Handheld Device

Provide high-performance solutions, including integrated circuits that are highly integrated to meet different application requirements.

Networking

Networking

GMT is committed to developing various circuit switch solutions to achieve protection for systems and devices.

Computer Applications

Computer Applications

GMT is committed to developing various circuit switch solutions to achieve protection for systems and devices.

Consumer

Consumer

GMT is committed to developing various circuit switch solutions to achieve protection for systems and devices.
