G2275AM51D

4A, 2.4MHz, COT Synchronous Step-Down Converter

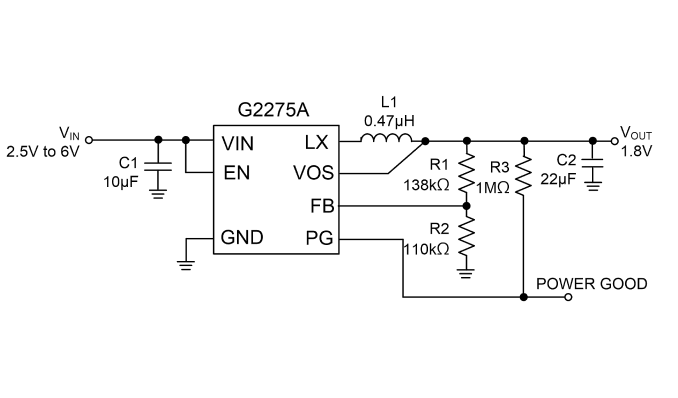

The G2275A is a monolithic, step-down, switch mode converter with built-in internal power MOSFETs. It achieves 4A continuous output current from a 2.6V to 6.0V input voltage with excellent load and line regulation. The Output voltage can be regulated to as low as 0.8V. At medium to heavy loads, the switching frequency is 2.4MHz. At light load, the device automatically enters PSM to maintain high efficiency.

Downloads

EDS-2275A-1648-240830-0.7
Add to compare Add to inquiry
Specifications
Vin (V)
min.
2.6
max.
6
IOUT
(A)
4
FSW
(k Hz)
1000
FB
(V)
0.8
DMAX
(%)
100
IQ
(µA)
17
Note

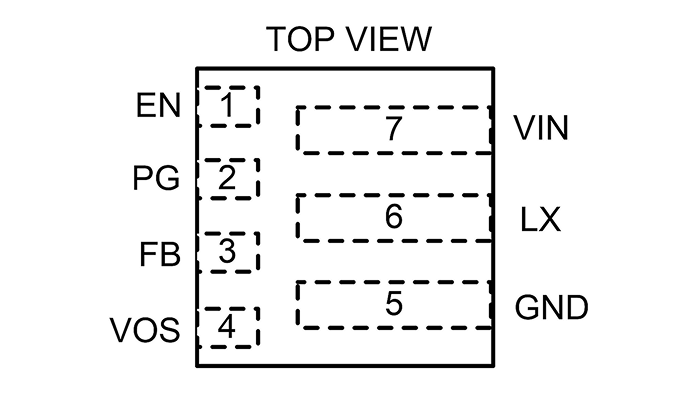

COT, EN, PG, FB, VOS, GND, LX, VIN
Package
ADFN2X2-7
Datasheet
EDS-2275A-1648-240830-0.7.pdf
