G2517AKM1U
Integrated Power Supply for TFT-LCD
The G2517A is a multi-channel power solution for TFT-LCD, tablet and notebook display panels. The G2517A includes I2C interface, one synchronous boost converters for AVDD, one buck converters for Vbuck, one VGH can be programmable timing and output voltage, one LDO regulator, two voltage detectors, one programmable VCOM generator with a high-speed amplifier for VCOM, one high-speed operation amplifier for HAVDD, two rail to rail operation amplifiers for GMA1 and GMA2. This device is suitable for TFT-LCD panel.
Downloads
Specifications
|
Vin (V)
|
min.
|
5.5 |
|---|---|---|
|
max.
|
7~13.5 | |
|
AVDD
|
(V)
|
7~13.5 |
|
VGH
|
(V)
|
10~34 |
|
VGL
|
(V)
|
-AVDD |
|
Buck
|
(V)
|
0.8~2.8 |
|
LDO
|
(V)
|
1.0~2.8 |
|
OP
|
(CH)
|
4 |
|
Note
|
AVDD Sync-Boost, VGH/VGL Charge-Pump, Sync-Buck, Reset*2,DVCOM, GMA*2, HAVDD, I2C | |
|
Package
|

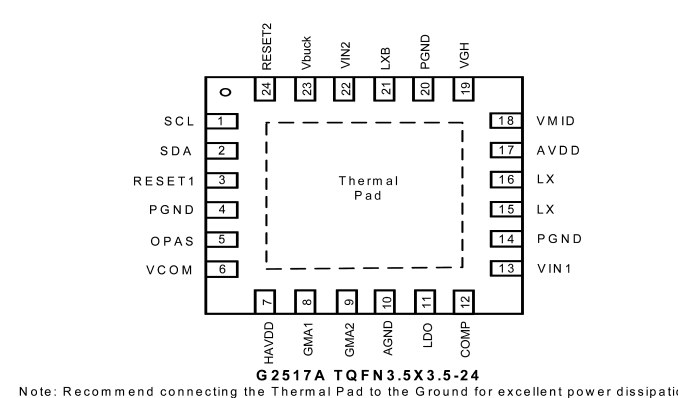

TQFN3.5X3.5-24 | |
|
Datasheet
|
EDS-2517A-1618-201029-0 4.pdf | |
