G2892K21D

Ultra-Low On-Resistance Load Switch

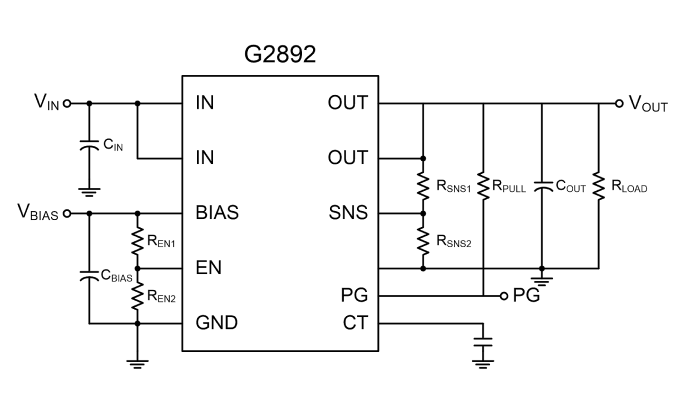

The G2892 is a single N-channel MOSFET power switch designed for high-side load-switching application. The device has a typical RDS(ON) of 14m and can support a maximum continuous current of 6A. The G2892 is controlled by an on/off input EN pin, which is suitable for interfacing directly with low-voltage I/O ports. The EN pin can also be configured via an external resistor divider to adjust under voltage lockout (UVLO) threshold.

Downloads

EDS-2892-1545-200921-0.6
Add to compare Add to inquiry
Specifications
Vin (V)
min.
0.7
max.
5.7
RON
(mΩ)
14
VOUT Rising
(ms)
ADJ
IOUT
(A)
6
Flag
Y
Dis-R
(Ω)
15
Note
--

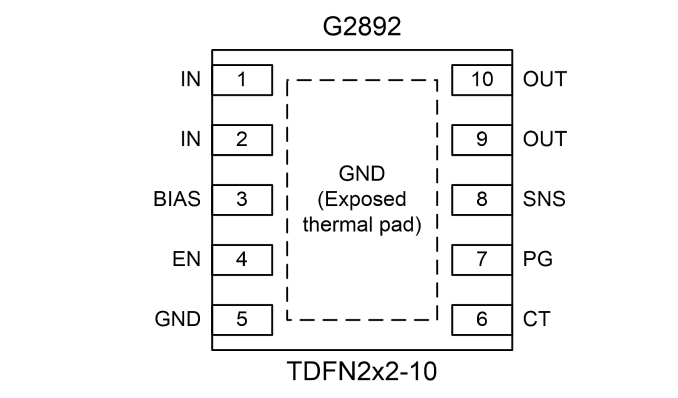

Package
TDFN2X2-10
Datasheet
EDS-2892-1545-200921-0.6.pdf
Application Fields
Computer Applications

Computer Applications

GMT is committed to developing various circuit switch solutions to achieve protection for systems and devices.
