G5250H1T1U

Power Distribution Switch

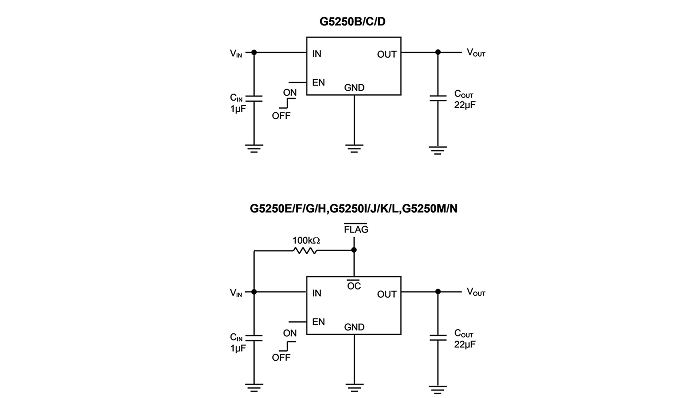

The G5250 is an integrated 90m power switch for self-powered and bus-powered Universal Serial Bus (USB) applications.

Downloads

EDS-5250-083-3.0-210824
Add to compare Add to inquiry
Specifications
Vin (V)
min.
2.7
max.
5.5
RON
(mΩ)
108
VOUT Rising
(ms)
1.5
IOUT
(A)
2.4
Flag
Y
Dis-R
(Ω)
N
Note
UL, IEC, CB, G5250Q IOUT=0.2A, G5250H/M/S IOUT=0.7A,G5250G/K/N IOUT=1.1A, G5250F IOUT=1.5A, G5250I IOUT=2.0A, G5250A IOUT=2.4A

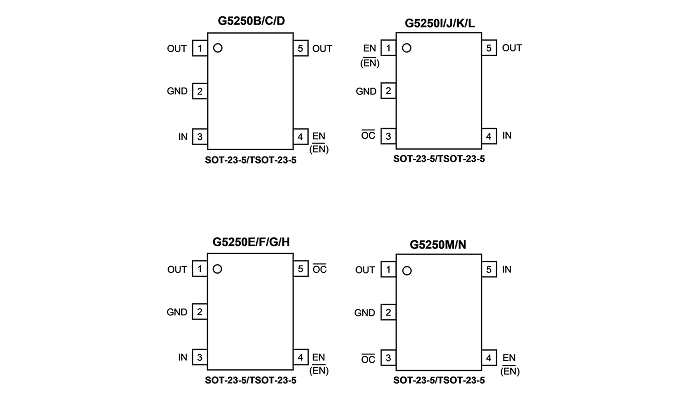

Package
SOT-23-5
Datasheet
EDS-5250-083-3.0-210824.pdf
Application Fields
Networking

Networking

GMT is committed to developing various circuit switch solutions to achieve protection for systems and devices.

Computer Applications

Computer Applications

GMT is committed to developing various circuit switch solutions to achieve protection for systems and devices.

Consumer

Consumer

GMT is committed to developing various circuit switch solutions to achieve protection for systems and devices.
