G5517R51U
Integrated Power Solution for TFT-LCD
The G5517 includes a step-up converter, two charge pumps, and a high current operational amplifier for TFT LCD. Also included are a logic-controlled high-voltage switch with adjustable delay and an open drain output reset comparator.
Downloads
Specifications
|
Vin (V)
|
min.
|
5.5 |
|---|---|---|
|
max.
|
ADJ | |
|
AVDD
|
(V)
|
ADJ |
|
VGH
|
(V)
|
ADJ |
|
VGL
|
(V)
|
ADJ |
|
Buck
|
(V)
|
-- |
|
LDO
|
(V)
|
-- |
|
OP
|
(CH)
|
1 |
|
Note
|
AVDD Async-Boost, VGH/VGL Charge-Pump,VCOM, GPM, Voltage Detector | |
|
Package
|

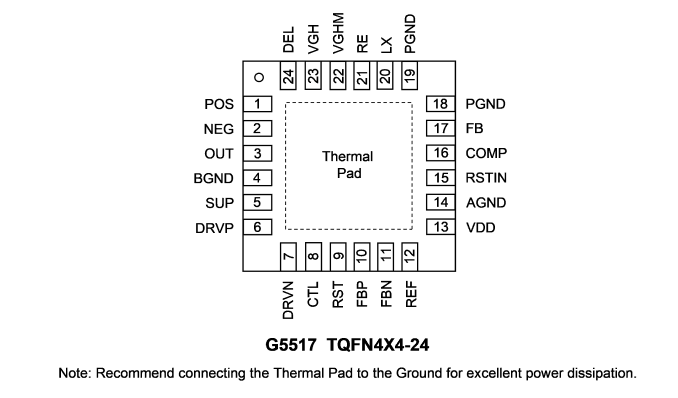

TQFN4X4-24 | |
|
Datasheet
|
EDS-5517-704-1.3-190820.pdf | |
