G5803T11U
1A Single Cell Li-Ion Battery Linear Charger
The G5803 is a standalone linear Li-Ion battery charger with a complete pre-charge, constant-current and constant-voltage charge loop.
Downloads
Specifications
|
Vin (V)
|
min.
|
4.25 |
|---|---|---|
|
max.
|
6.5 | |
|
CCMAX(A)
|
1 | |
|
Pre-Charge(A)
|
0.1*CC | |
|
CV
|
(V)
|
4.2 |
|
Status
|
LED
|
1 |
|
TEMP
|
TS
|
NO |
|
Note
|
Programmable CC, CV, UVLO, OTP, Vin OVP | |
|

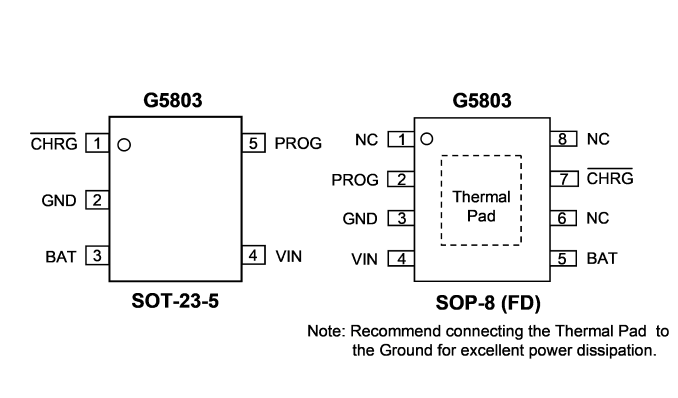

Package
|
SOT-23-5 | |
|
Datasheet
|
EDS-5803-1130-130618-0.2.pdf | |
