G5931P1U

Switched Capacitor Voltage Inverter

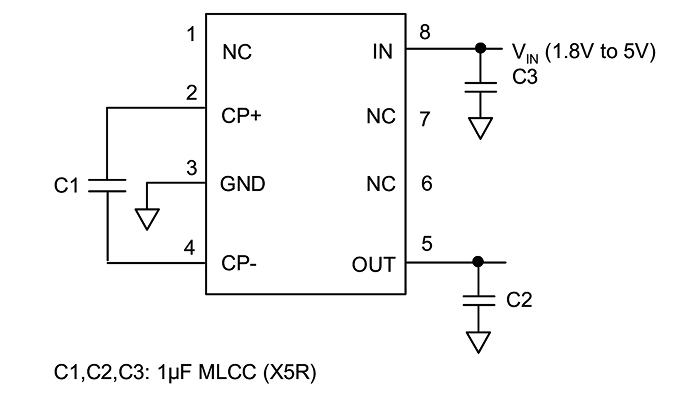

The G5931 is an unregulated charge-pump voltage inverter which may be used to generate a negative supply from positive input. Input voltages ranging from +1.8V to +5V can be inverted into a -1.8V to -5V output supply. The devices is ideal for both battery- powered and board level voltage conversion applications with a typical operating current of 0.52mA at 3.3V supply.

Downloads

EDS-5931-205-1.2-181019
Add to compare Add to inquiry
Specifications
Vin (V)
min.
1.8
max.
5
IOUT
(mA)
60
FOSC
(k Hz)
270
LED
CH
--
Positive
V[O] (V)
--
Negative
V[O] (V)
-VIN
Note

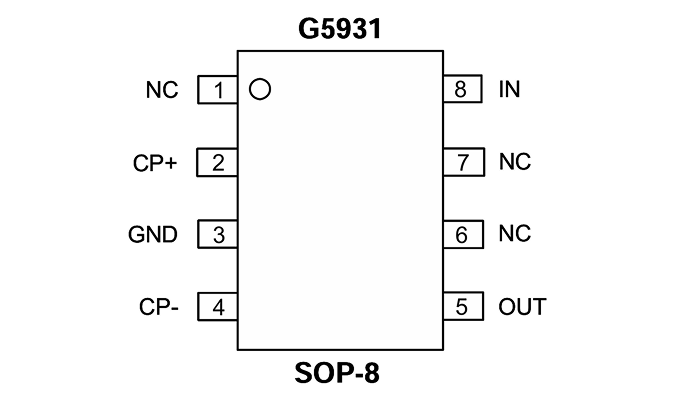

NC, CP+, GND, CP-, OUT, NC, NC, IN
Package
SOP-8
Datasheet
EDS-5931-205-1.2-181019.pdf
Application Fields
Handheld Device

Handheld Device

Provide high-performance solutions, including integrated circuits that are highly integrated to meet different application requirements.

Networking

Networking

GMT is committed to developing various circuit switch solutions to achieve protection for systems and devices.
