G601A31U

Manual Reset IC with Adjustable Deglitch Time

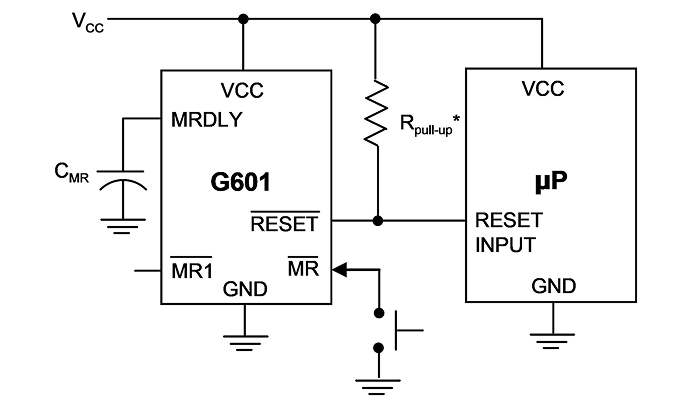

The G601 is a manual reset IC used in µP and digital systems. They provide excellent circuit reliability and low cost.

Downloads

EDS-601-990-120601-0.3
Add to compare Add to inquiry
Specifications
VCC (V)
min.
2.2
max.
5.5
Detecting Voltage
(V)
VCC x 0.5
ICD source
(µA)
1.1
VTCD
(V)
0.833
Isupply
(µA)
4
Note
Open-Drain OutputTMR (ms) = 76,000 × CMR (uF)

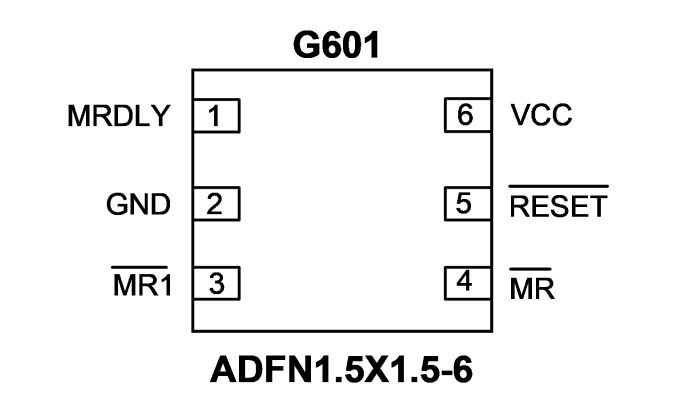

Package
ADFN1.5X1.5-6
Datasheet
EDS-601-990-120601-0.3.pdf
